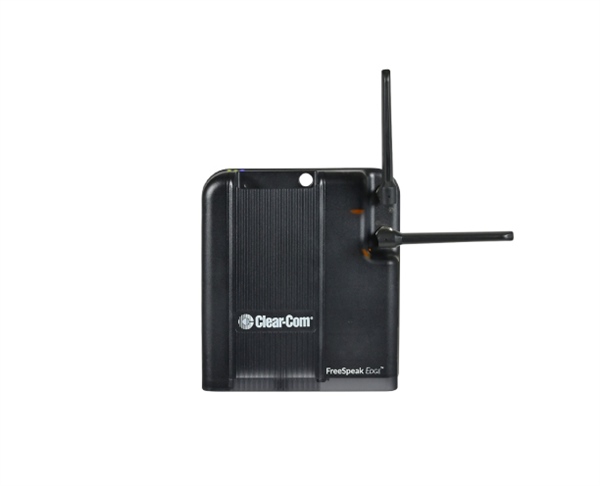

FSE-TCVR-50

Transceiver

• LED status indicators on top and bottom of transceiver
• External omnidirectional antennas for the transceiver
• Dual redundant radios per beltpack and transceiver
• Separate radios for RF and radar scanning
• Wall-mount plate
• Microphone stand mounts (metric and imperial threads)
• Tripod spigot mount

Connectivity

• Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
• Supports 10 FreeSpeak Edge beltpacks per transceiver
• Supports up to 64 transceivers and beltpacks per 64 port E-IPA-HX card and 200 beltpacks per Eclipse HX system
• Robust radio link works in high multipath or reflective environments
• Wi-Fi coexistence
• Standalone mode for site survey and demo
• AES256 shared key encryption
• Dual network connections
• etherCON RJ45 network connection
• High speed SFP fiber cage
• Power-over-Ethernet (PoE) up to 330ft (100m)
• Daisy-chaining up to three locally powered transceivers

Mechanical

• IP53 rating for wet and dusty conditions
