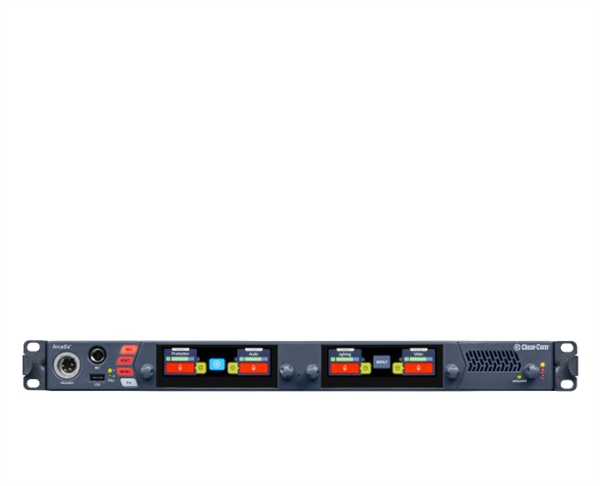

ARCADIA CENTRAL STATION

Arcadia Central Station

• Combined Wired and Wireless Intercom
• Keypanels with Essential feature set
• I.V. Direct Clear-Com Global Interfacing

            - LQ
            - Eclipse E-IPA
            - Arcadia

• Local Dante and Analog Interfacing
• CCM^™ browser setup, configuration & monitoring
• Scalable Licensed Port capacity
• Front panel color touch screen with encoders for control and configuration
• Plug-and-go central discovery and pairing

Capacity

FreeSpeak Wireless Intercom

• (10) E1 Transceivers (1.9¹, 2.4 GHz)
• (32) IP Transceivers (1.9¹, 5 GHz)
• (64) Beltpacks² (1.9¹, 2.4, 5 GHz)

HelixNet Wired Intercom

• (≤24) Enabled Channels^{2, 3}
• (24) Powerline Devices
• (128) User Stations (Beltpack, Speaker & Remote)

• V-Series⁴ Keypanel Essential Features

• (32) AES67 Connected^{2, 4, 5}
• (≤32) I.V. Connected^{2, 3}

• I.V. Direct Clear-Com Interface

• (≤32) I.V. Direct Ports²

Dante Audio Network Interfaces

• (64) Dante Ports²

Configuration

• • (200) Licensed Ports²
  - FreeSpeak Beltpack
  – HelixNet Enabled Channel
  – V-Series Keypanel
  – I.V. Direct Port
  – Dante Port
• (100) Channels
• (100) Groups
• (100) IFB⁵
• (300⁵) Roles for FreeSpeak, HelixNet & V-Series

Connectivity

• (8) 4-Wire - 1 for PGM/SA
• (4) 2-Wire - 560mA per pair
• (2) GPI Optically Isolated
• (4) GPO Relay
• (2) FreeSpeak E1 - RJ45/SFP switchable
• (4) LAN - (2) RJ45, (2) SFP; Assignable to management (with HelixNet & I.V. Connectivity), AES67/AoIP, Dante Primary & Secondary

Footnotes:

¹1.9 GHz E1 and IPT transceivers should not overlap on the same system. Beltpacks will not roam between E1 and IPT Transceivers.
²Requires Arcadia with sufficient number of Licensed Ports
³Dependent on Device Allocation
⁴V-Series Iris and IrisX keypanels fully support all Arcadia features while original V-Series has limited support using I.V. ports. Non-Iris desktop panels can be configured using the 12 key 1RU Role layout. Non-Iris cannot be upgraded from Arcadia, requiring alternative methods. Expansion panels are not supported on Arcadia.
⁵ Available in Arcadia R4.1
