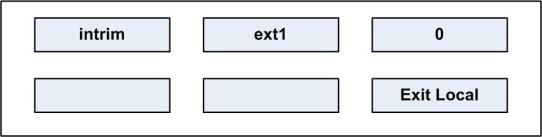

intrim
The intrim command allows the trim, or gain, to be adjusted on each of the input streams.
Display 2 shows the stream name.
Display 3 shows the trim in dB.
The available input channels where the trim can be set are:
| Options | Description / comments |
|---|---|
| ext1 | Input from external input 1 on the auxiliary audio connector |
| ext2 | Input from external input 2 on the auxiliary audio connector |
| hs1 | Input from headset 1 microphone |
| hs2 | Input from headset 2 microphone on the auxiliary audio connector |
