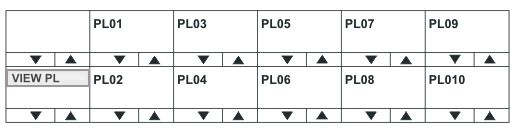

PARTY LINE menu

The PARTY LINE menu option displays the partylines available to the panel.

Use the up/down volume buttons or the rotary control on the Reply key (VIEW PL) to scroll through the available partylines on the panel display.

Select one of the partylines to display the membership menu for that partyline.

To return to the SYS INFO menu, press the Reply key or Reply key talk button (VIEW PL).

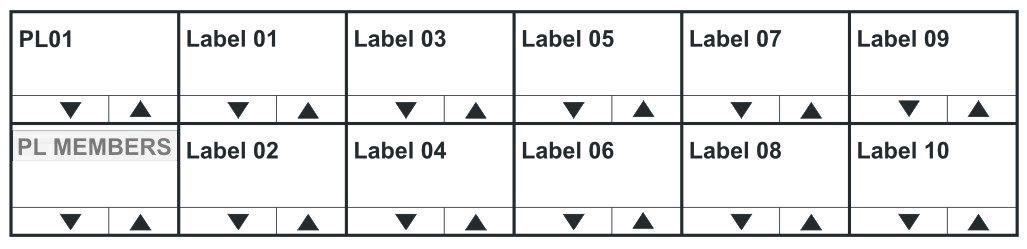

PL MEMBERS menu

The PARTY LINE > PL MEMBERS menu shows you the members of the partyline you selected in the PARTY LINE menu.

Use the volume up/down buttons or the rotary control on the Reply key (PL MEMBERS) will scroll through the list of party line members.

Any members that were assigned to a partyline using Dynam-EC, rather than EHX, are not displayed. This is because Dynam-EC assignments are temporary, rather than fixed, as in the EHX configuration.

To return to the PARTY LINE menu, press the Reply key or Reply key talk button (PL MEMBERS).
