Front panel color displays, Iris panel

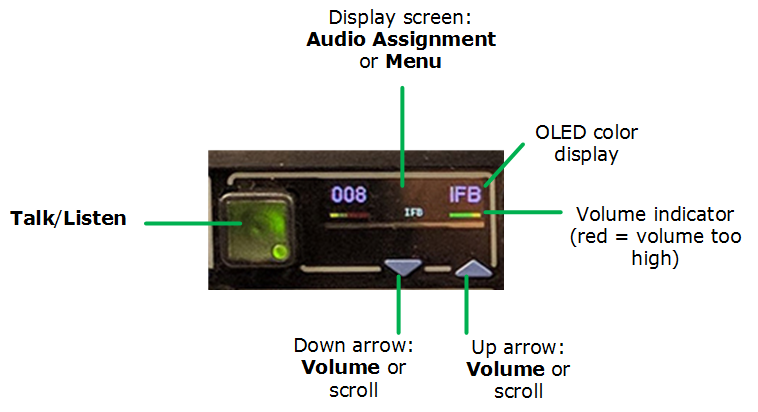

The Iris panel takes its name from a multi-colored display designed for quick visual identification of audio entities (for instance; IFB, Partyline). The color identifications are listed below.

Note:

The key display OLEDs may show some brightness variation at dim levels. This is expected for this display technology. When used at normal operating brightness, the displays should not show much variation although this may degrade slightly with age.

Color functionality requires a matrix with Eclipse-HX 11.0 or above software installed. Iris panels that are connected to matrices with older software installed will display white text. V-Series panels that date from before the Iris panel do not support the color display.
