Connecting 2-wire Equipment

When connecting 2-wire equipment the following functions should be taken into consideration:

  • Auto-null

Every time equipment is changed on a 2-wire port you should auto-null.

  • Enable/Disable the partyline power
  • Line Termination.

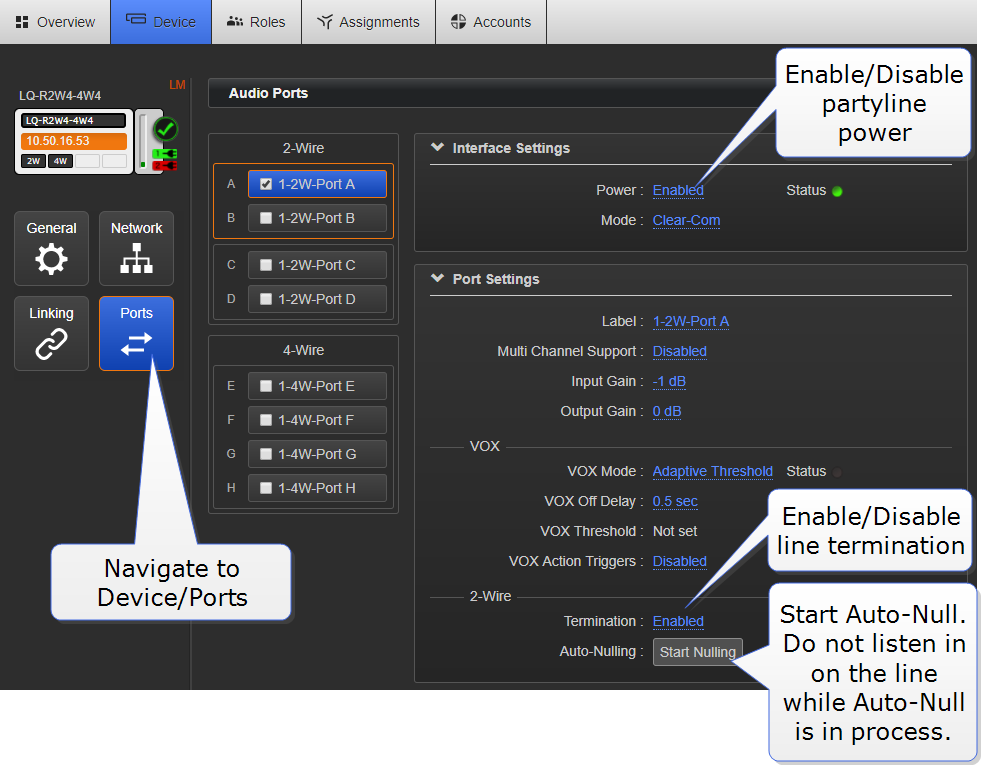

These functions can be found in the 2-wire port settings page of the CCM. Navigate to Device > Ports on any unit in the Link-Group.

Example: 2-wire connection



Equipment Port settings
Encore RS beltpack 701/2/3 Power: Enabled Termination: Enabled Auto-nulling: Start auto-nulling
Encore MS-702/4Encore PK-7Encore PS-702/4 Power: Disabled Termination: DisabledAuto-nulling: Start auto-nulling
