Splitter Software Version (FSII-SPL)
Splitter software is not usually user upgradable, but if necessary you can find out the splitter software version (usually for system diagnostic purposes) by connecting to the splitter with a PC and using a serial console emulator such as Tera Term.
- Remove the covering panel (two screws) on the base of the splitter to access a USB (micro) port next to the dip switch settings.
- Connect the splitter to a PC using a USB A to micro B cable.
- Allow windows to install a USB com port driver (this should be automatic).

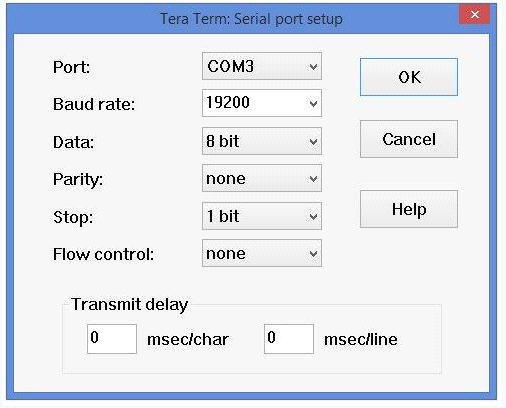

- Using a serial console emulator (such as Tera Term), input serial console settings.

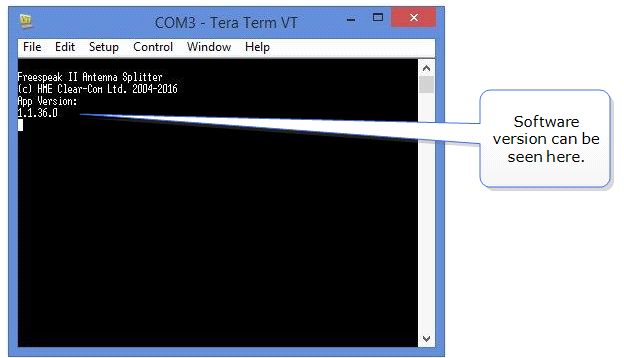

- Open the serial console. Press the space bar and the splitter will output its software version as shown.
