Transceiver sync compensation (cable compensation)

You must set transceiver sync compensation if the total cable length between transceivers is greater than 500m / 1640 feet.

ClosedAbout transceiver sync compensation

Example

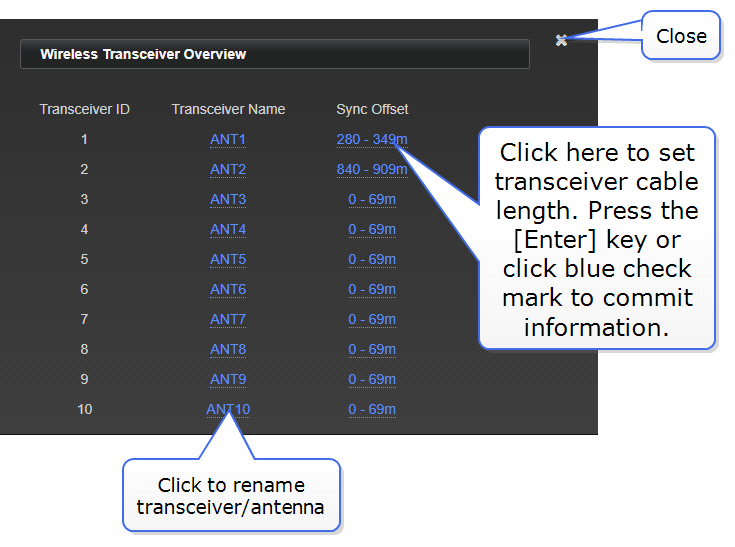

Transceiver 1: total cable length = 100m / 328 feet.

Transceiver 2: total cable length = 850m / 2788 feet.

In this case, transceiver cable length should be set.

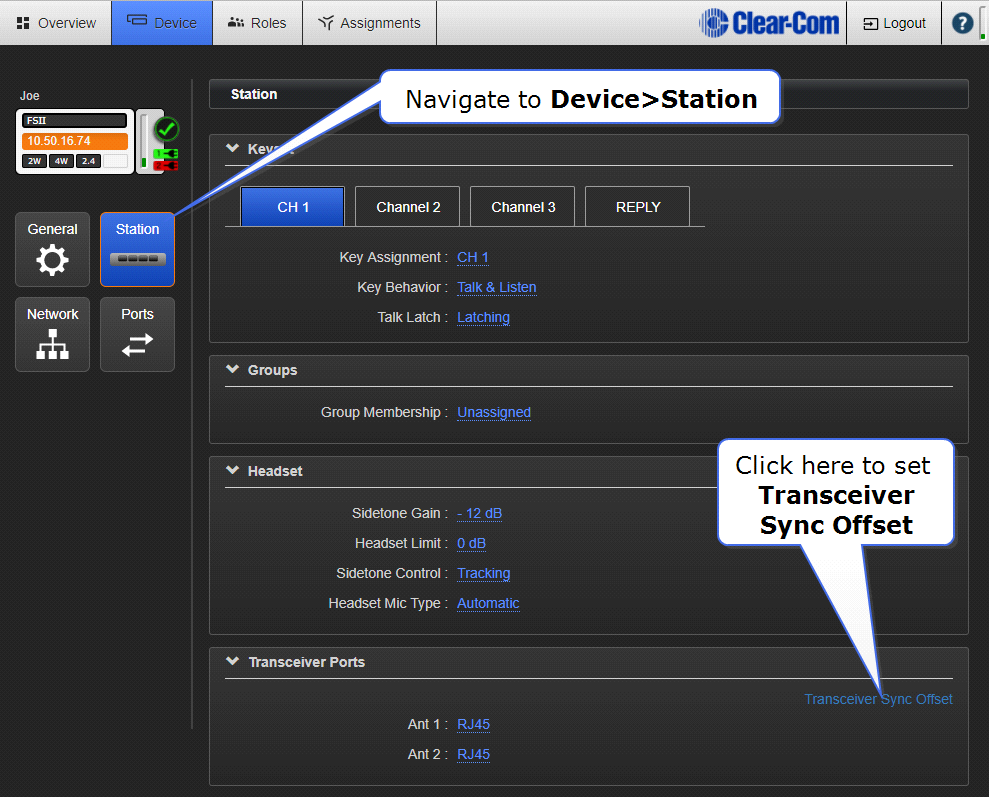

Set transceiver sync offset in the CCM: Cable compensation Cable compensation 2.

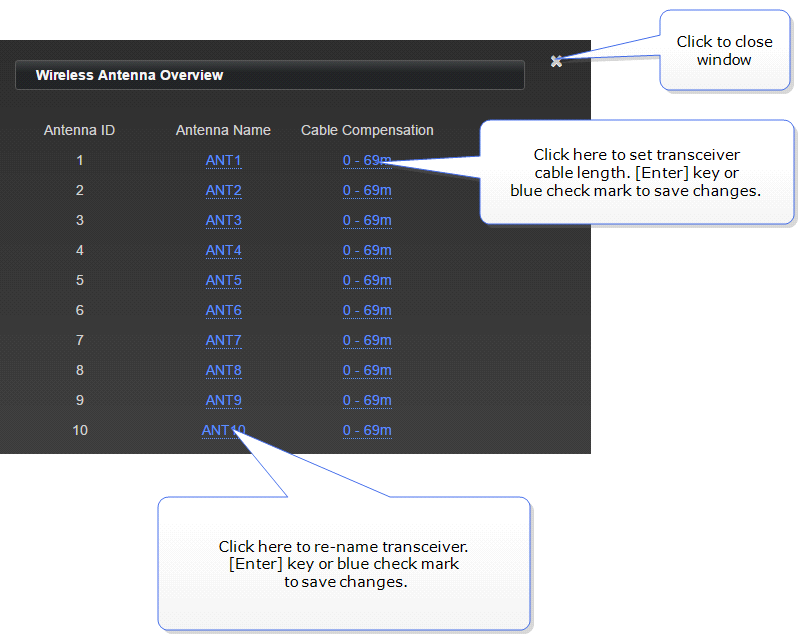

Set transceiver sync offset from the Base menus:Set cable compensation on base
