Connecting 4-Wire Clear-Com to Clear-Com
When connecting Clear-Com to Clear-Com, one device must be in 4-wire mode and one device must be in 4-wire-X mode if you wish to use a straight-through cable.
When connecting Clear-Com to Clear-Com, one device must be in 4-wire mode and one device must be in 4-wire-X mode if you wish to use a straight-through cable.

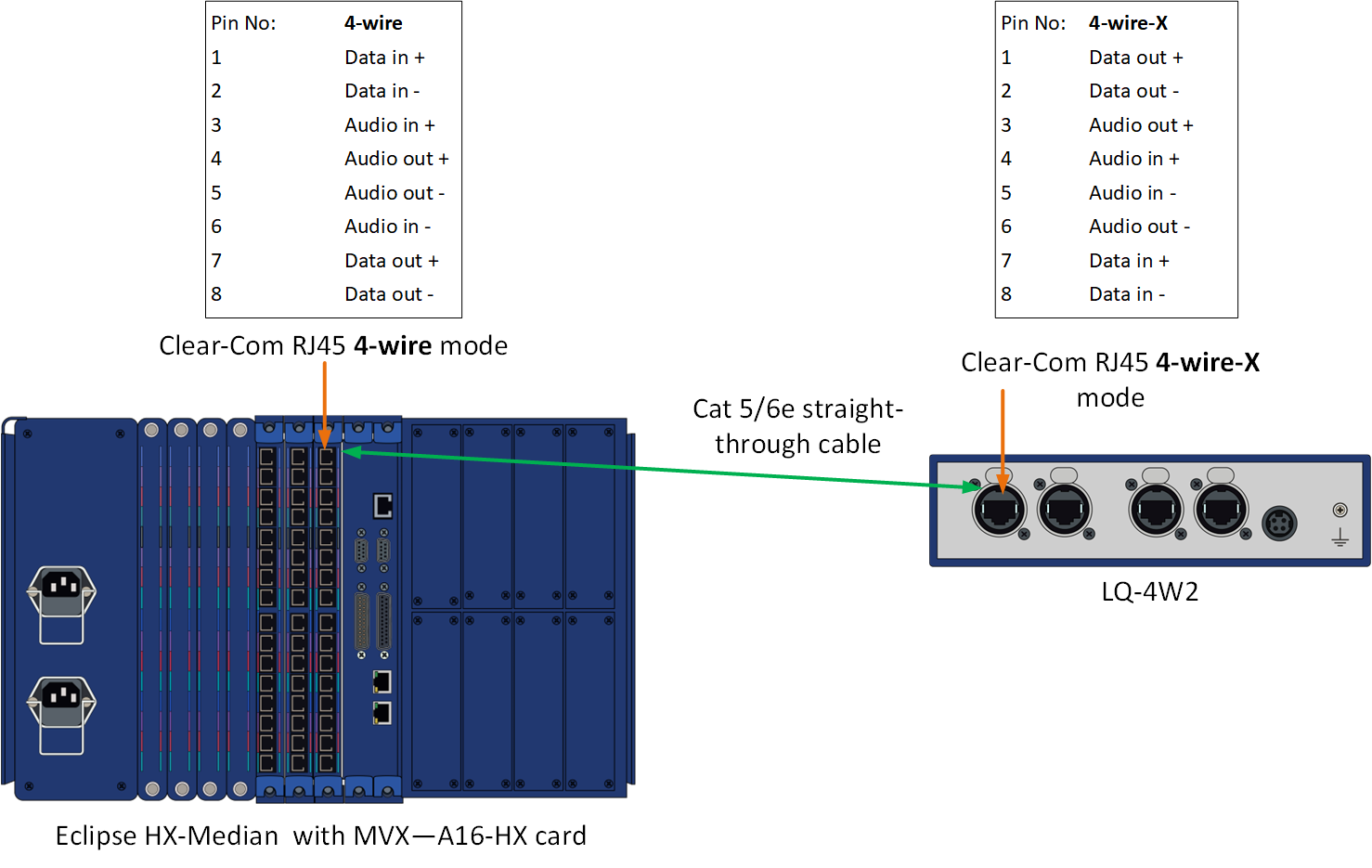

Example: Eclipse-HX MVX-A16-HX card to LQ 4W2

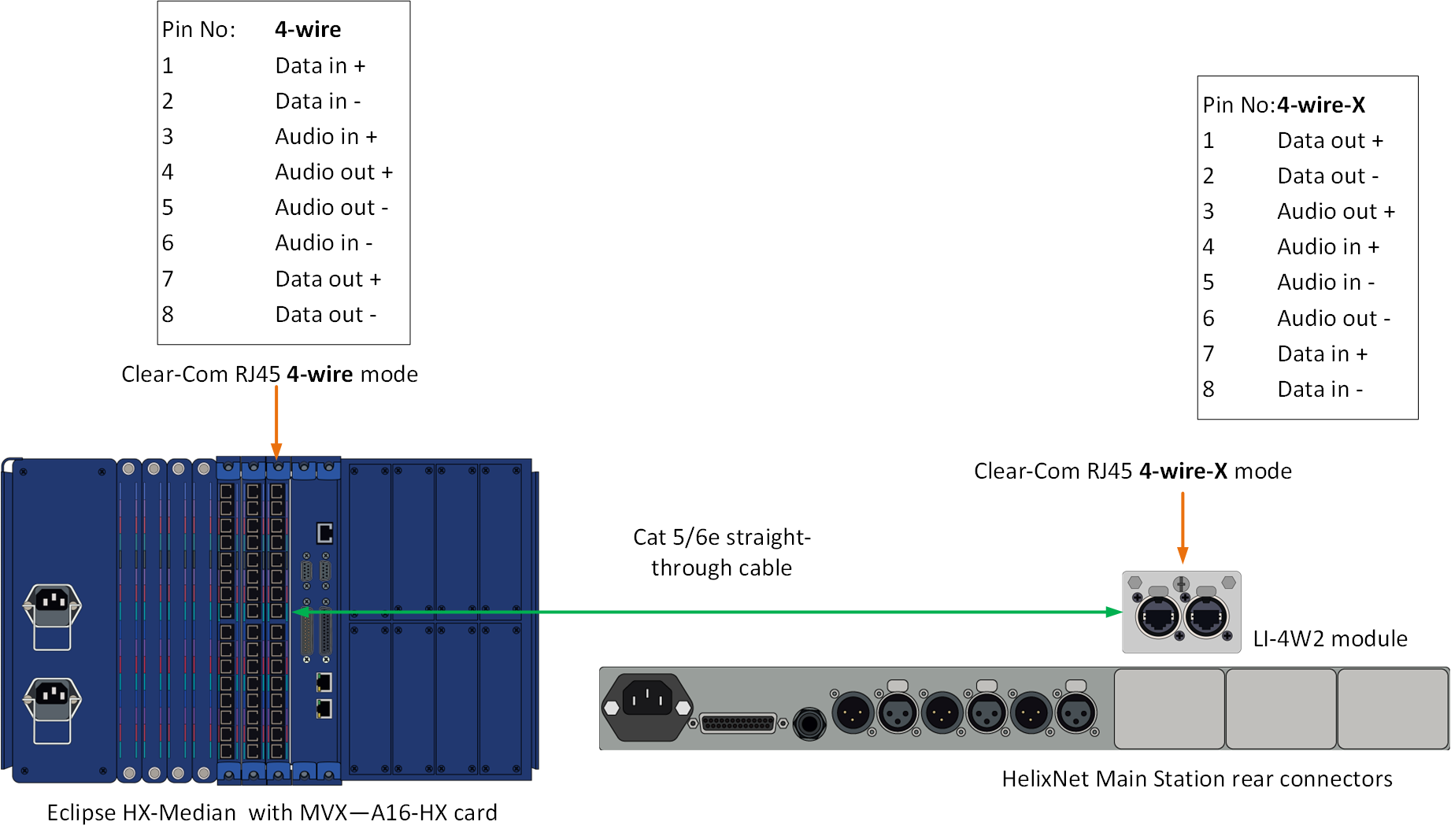

Example: Eclipse-HX MVX-A16-HX card to HelixNet Main Station
