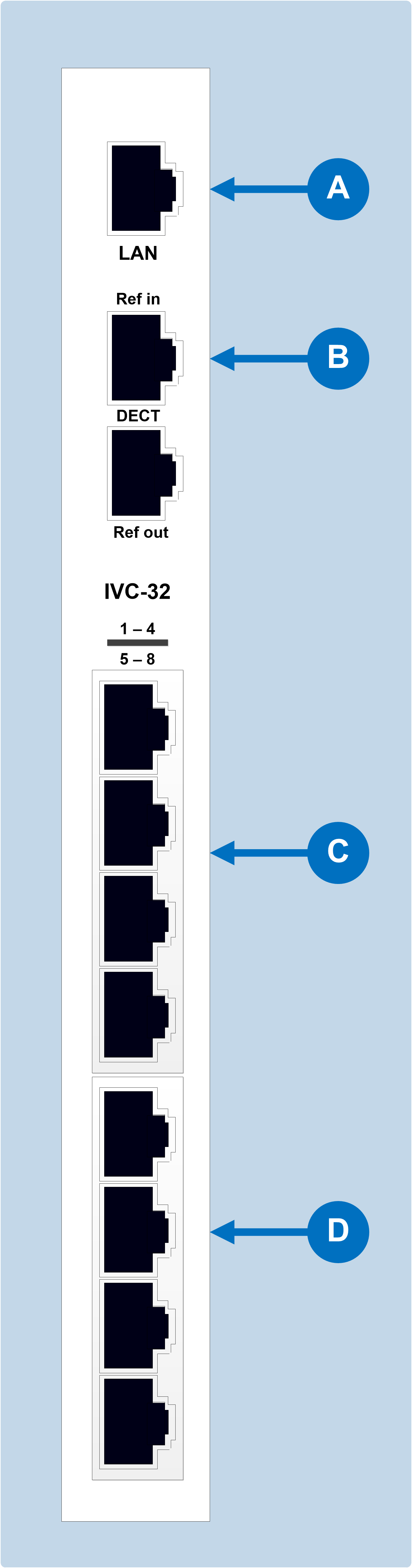

IVC-32 Rear Panel Connectors
|
Key to IVC-32 rear panel connectors |
|
|---|---|
|
Feature |
Description |
|
|
LAN port (RJ-45) |
|
|
DECT sync ports: DECT Ref in (Not used) DECT Ref out (Not used) |
|
|
E1 / T1 Port 1 - 4 (Not used) |
|
|
E1 / T1 Port 5 - 8 (Not used) |
| Note: | The E1/T1 and DECT ports are not used on the IVC-32 interface and should not be connected. |
