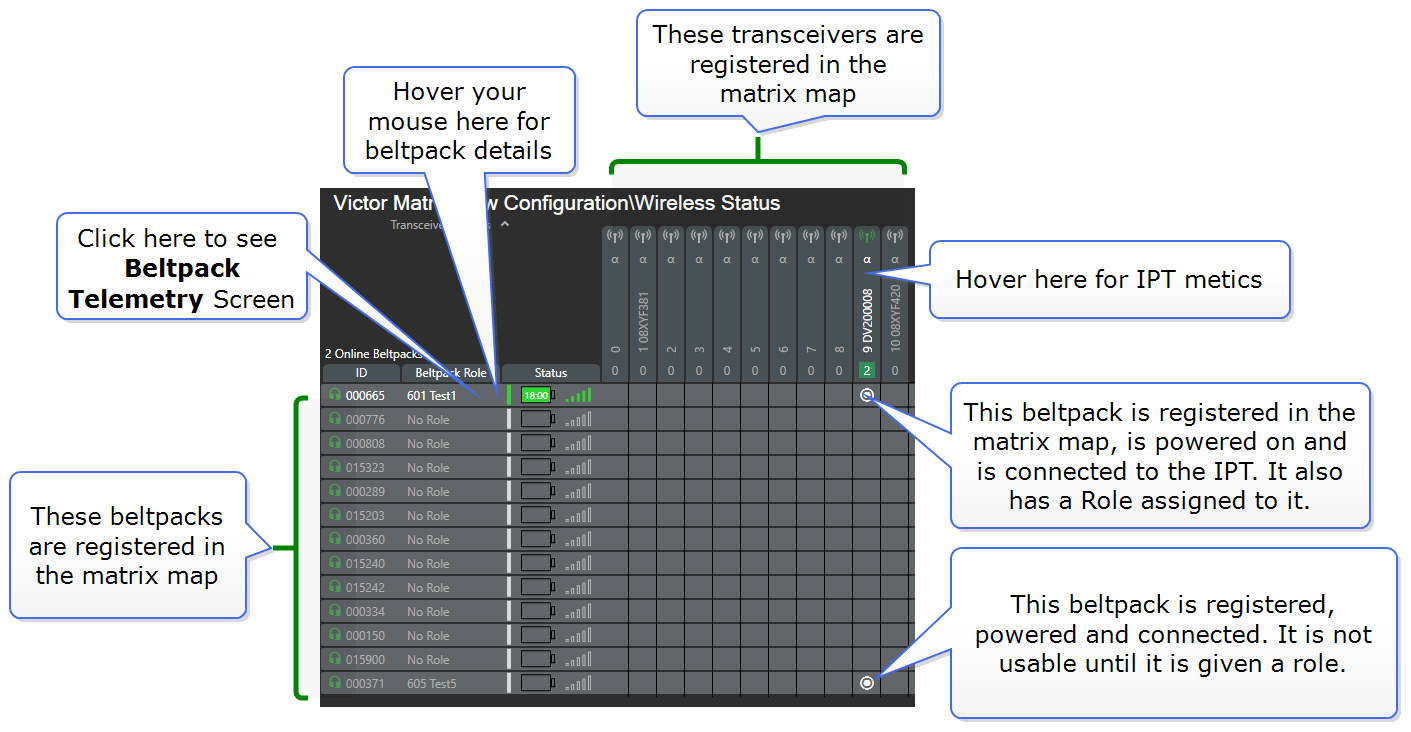

Transceiver/Beltpack Association Grid

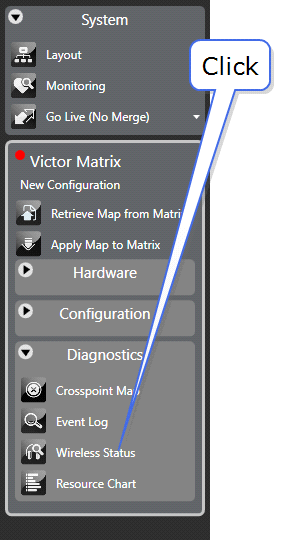

To see wireless diagnostics, navigate to Diagnostics>Wireless Status in the EHX Configuration Software.

Indicator

Indicator meaning

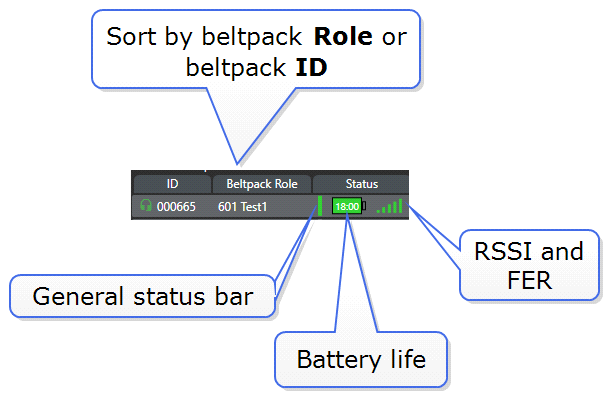

General status bar

Turns amber/red on:

  • Low battery

  • Low signal strength

  • High error rate

Battery

For lithium batteries:

  • Amber: 16% battery, ~2 hours life remaining

  • Red: 8% battery, ~1 hour life remaining

Received Signal Strength

Indicator (RSSI)

  • Amber: RSSI below 40

  • Red: RSSI below 30

RSSI must be above 30 for audio to work reliably.

Frame Error Rate (FER)

FER should be close to 0. Unsatisfactory FER is shown by a colored rectangle:

  • Green, good: ≤10%

  • Amber, warning: ≥10%

  • Red, warning: ≥20%

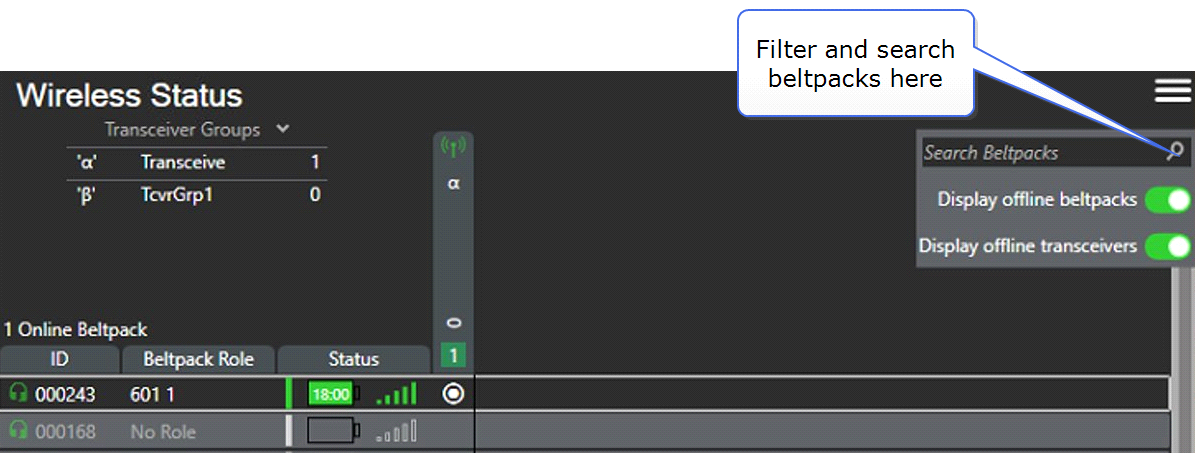

Group, filter and search beltpacks
