Role Based Panels - USB Role Selection

V-Series Iris and IrisX only.

This option can be used to allow a user to start an intercom session using a particular role by simply inserting a prepared USB stick into the front of an IrisX panel.

The session can be ended by removing the USB stick.

This options is set in EHX > Matrix > Configuration > Roles > [select role] > Role Options:

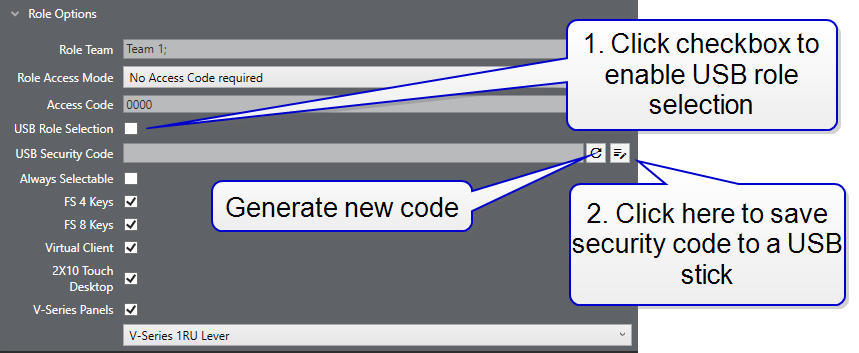

Enable USB role selection

  1. Click the USB Role Selection checkbox to enable this feature. You will see a USB Security Code.

  2. Click the USB icon. This allows you to navigate to the USB drive where you will save the code to a USB stick. Save the code to the root directory.

    USB directory

When you have done this, the USB stick can be inserted into the USB drive on the front of a panel to start an intercom session for this role.

Note: If you generate a new code, the USB stick used to start the session must contain the new code.
Note: Configuration changes must be applied to the matrix to become live.
Note: The USB must be windows compatible, for example, FAT32, NTFS.
Note: This feature is only available for IrisX panels that have been enabled for use with roles.
Note: USB login cannot be used with an access code for role security. The USB must be kept securely.
