Adding IP Transceivers (FS Edge, FS II 1.9)

Note:

To add E1 transceivers, see Connecting Transceivers Over E1.

To add IP transceivers:

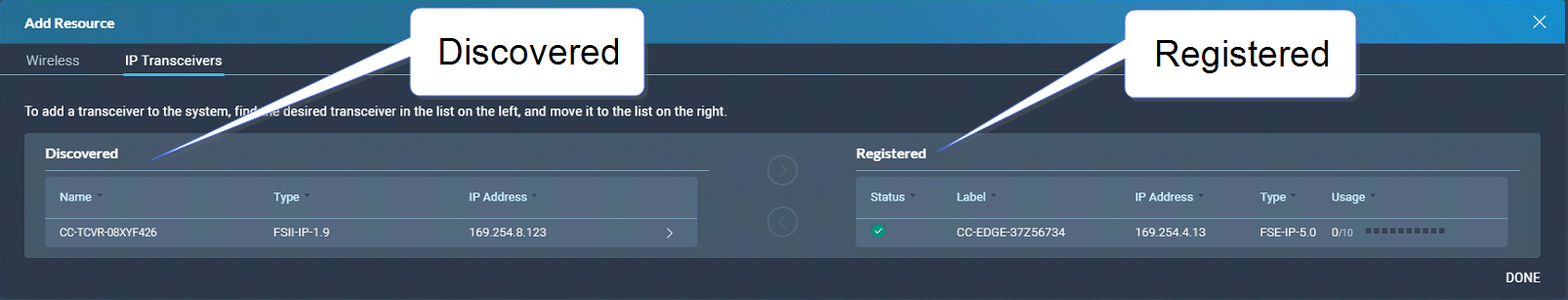

1. Navigate to Hardware > Resources and select Add Resource. The following screen appears.

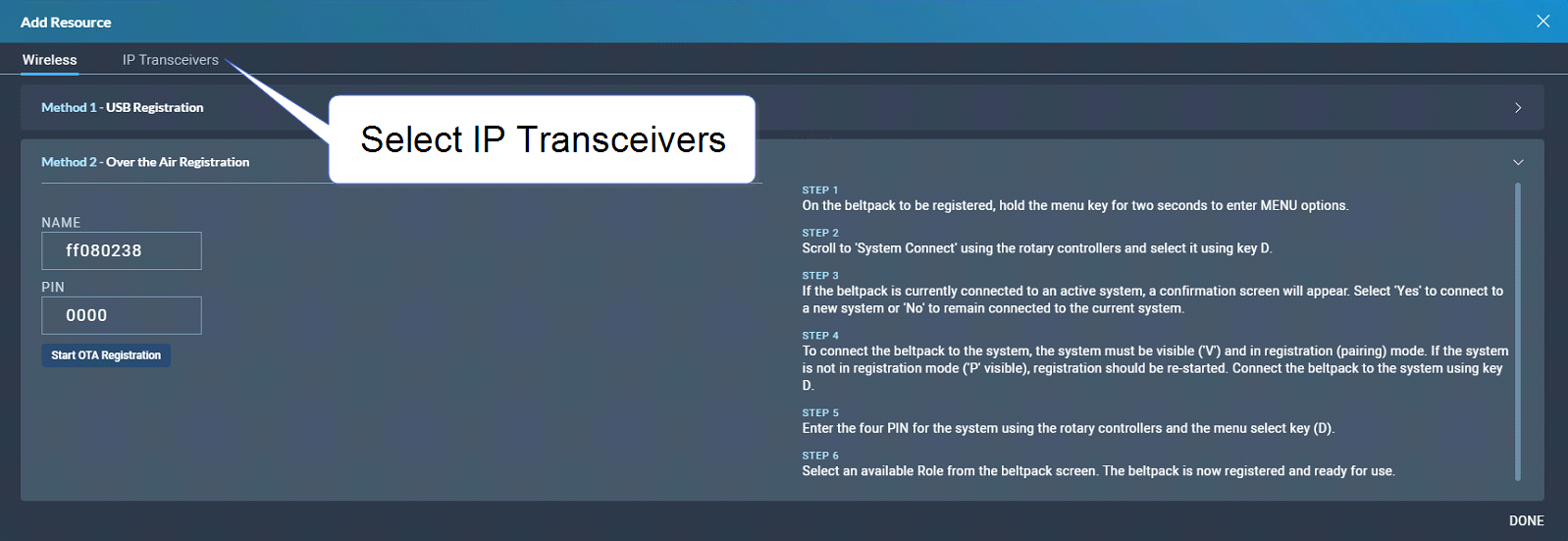

2. Select IP Transceivers. The following screen appears:

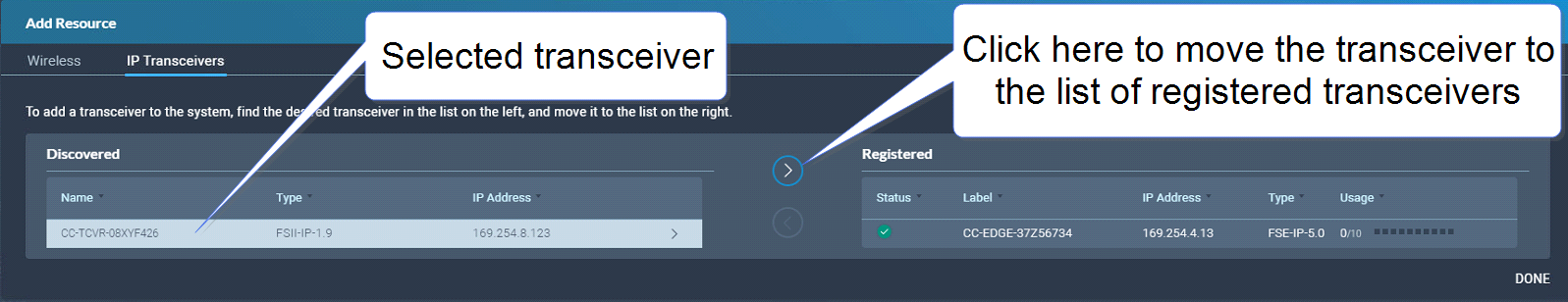

3. Select the transceiver that you want to register from the left-hand area of the screen, and click the right-hand arrow.



   The selected transceiver appears in the right-hand list of registered transceivers.
