Logic Page

The Arcadia Station offers six fully configurable GPIOs, increasing the range and possible uses of controls and relays.

• 2 x GPIs. These can be used, for example, to allow the station operator to open an audio route to a Channel using a foot switch, or to route a program feed to a Channel, Group or beltpack when an on-air light comes on.

  • Up to 10 different audio routes can be generated on each GPI.

• 4 x GPOs. The most common uses for output relays are to turn on an on-air light, connect to a radio, or send an input to an external audio console.

  • Up to 10 different actions can be generated on each GPO.

• You can also set up extended control sequences in the Control Logic section.

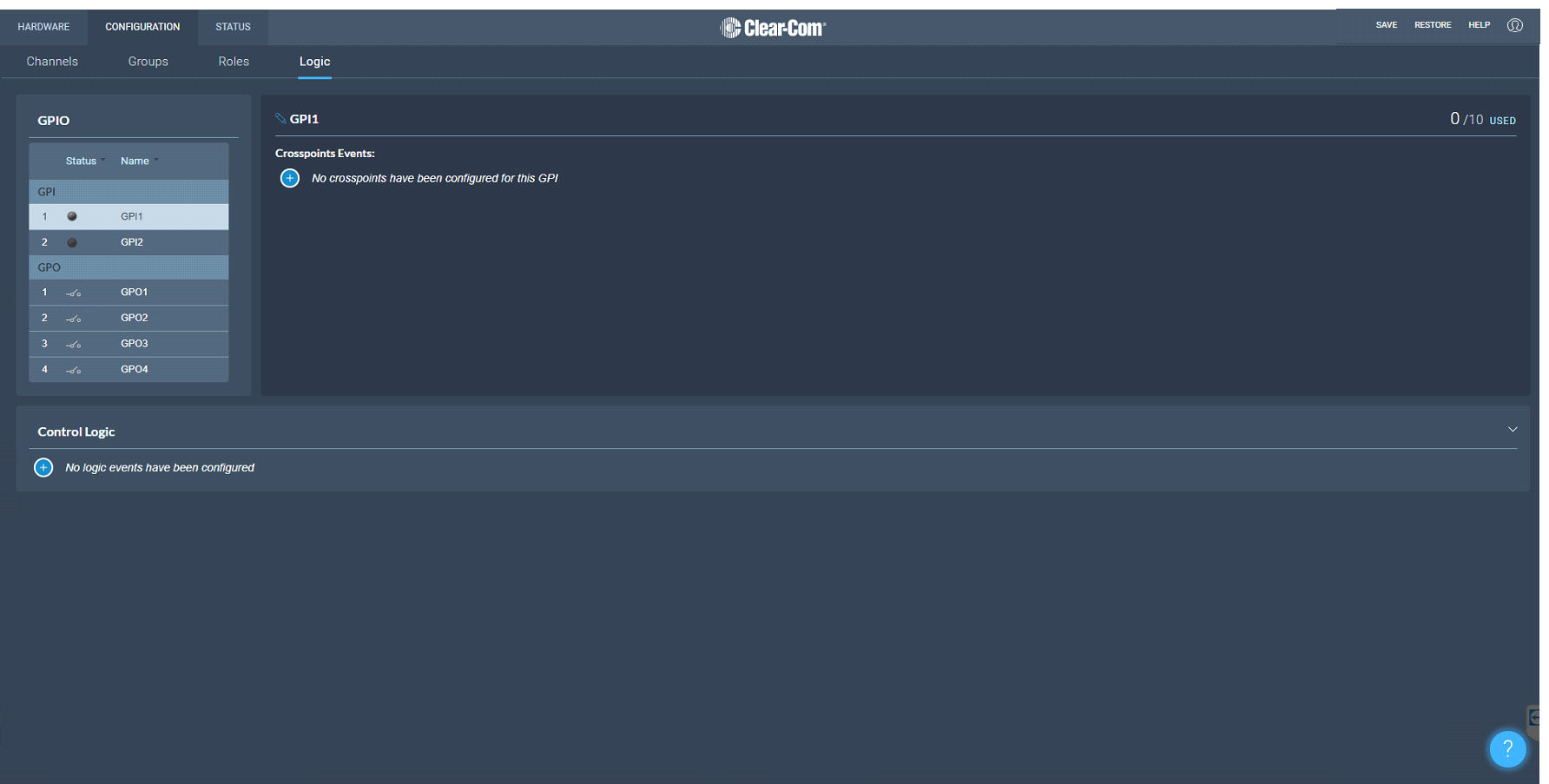

Relays (GPOs) and GPIs are configured in the Configuration > Logic page of the Core Configuration Manager (CCM) and can be viewed and tested on the Status > Logic page.
