Arcadia Central Station

The Arcadia® Central Station provides a scalable IP networked intercom system. It has a compact 1RU form and can be configured either from the browser-based Core Configuration Manager (CCM) or the front panel menu system. The Arcadia intercom system supports wireless, wired and keypanel user stations, in a variety of form factors, frequencies and connectivity types.

As an intercom user station, Arcadia provides 4 keysets with high resolution touch-screen control. Keysets are assignable to any channel, group, beltpack, program audio or stage announce. The user station has a headset connection, a gooseneck mic connector and a loudspeaker, in addition to All Call, Stage Announce and Remote Mic Kill buttons.

Arcadia interfaces with a variety of audio and intercom systems; Clear-Com's I.V. Direct, Dante, 4-wire line-level audio, 2-wire partyline connections to existing analog intercom systems. GPIO connections provide inputs and relay outputs for system control and interfacing, programmable in Arcadia’s logic configurator ( navigate to: CCM>Configuration>Logic).

Features

• Combined intercom system using FreeSpeak wireless, HelixNet wired intercom and V-Series keypanel endpoints

• I.V. Direct for intercom expansion and system bridging locally or globally

• Dante network and analog audio interfacing

• 2-wire partyline intercom

• GPIO control and interfacing

• Plug-and-go with central discovery and pairing

• Intuitive CCM browser configuration

• Front panel touch screen intercom user station and configuration

• Scalable capacity licensing

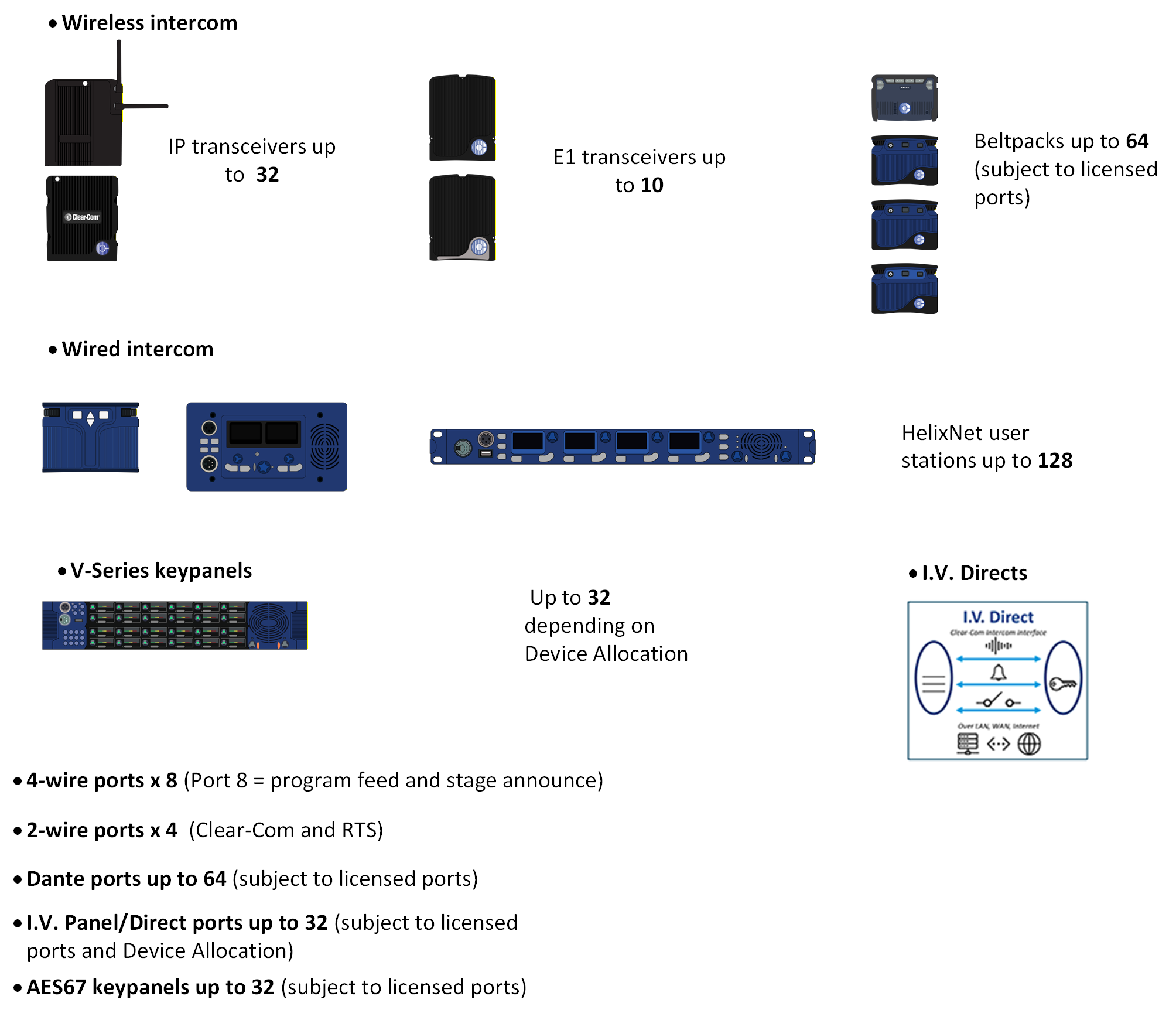

Maximum System Capacity

FreeSpeak wireless intercom

• 10 E1 transceivers (1.9, 2.4 GHz)

• 32 IP transceivers (1.9 GHz, 5 GHz)

• 64 beltpacks* (1.9, 2.4, 5 GHz)

HelixNet wired partyline intercom

• 0 - 24 HelixNet enabled channels*

• 128 HelixNet user stations (beltpacks, remote station, speaker station)

• 24 HXII-DPL powerline devices

V-Series keypanel

• 0 - 32 using I.V. ports *

• 0 - 32 using AES67 *

• 64 panels max. in total*

I.V. ports (used for I.V. Directs and Panels)

• Up to 32 I.V. ports (default = 16 ports)*

* Subject to licensed port capacity

AES67 ports (Panels)

• Up to 32 AES67 ports *

Dante audio network interfaces

• 64 Dante ports*

Hardwired ports

• 8 four-wire connections

  • Port 8 is dedicated to program feed and stage announce audio

• 4 two-wire connections

  • Clear-Com or RTS

System limits

• Up to 100 channels and groups

• 200 roles

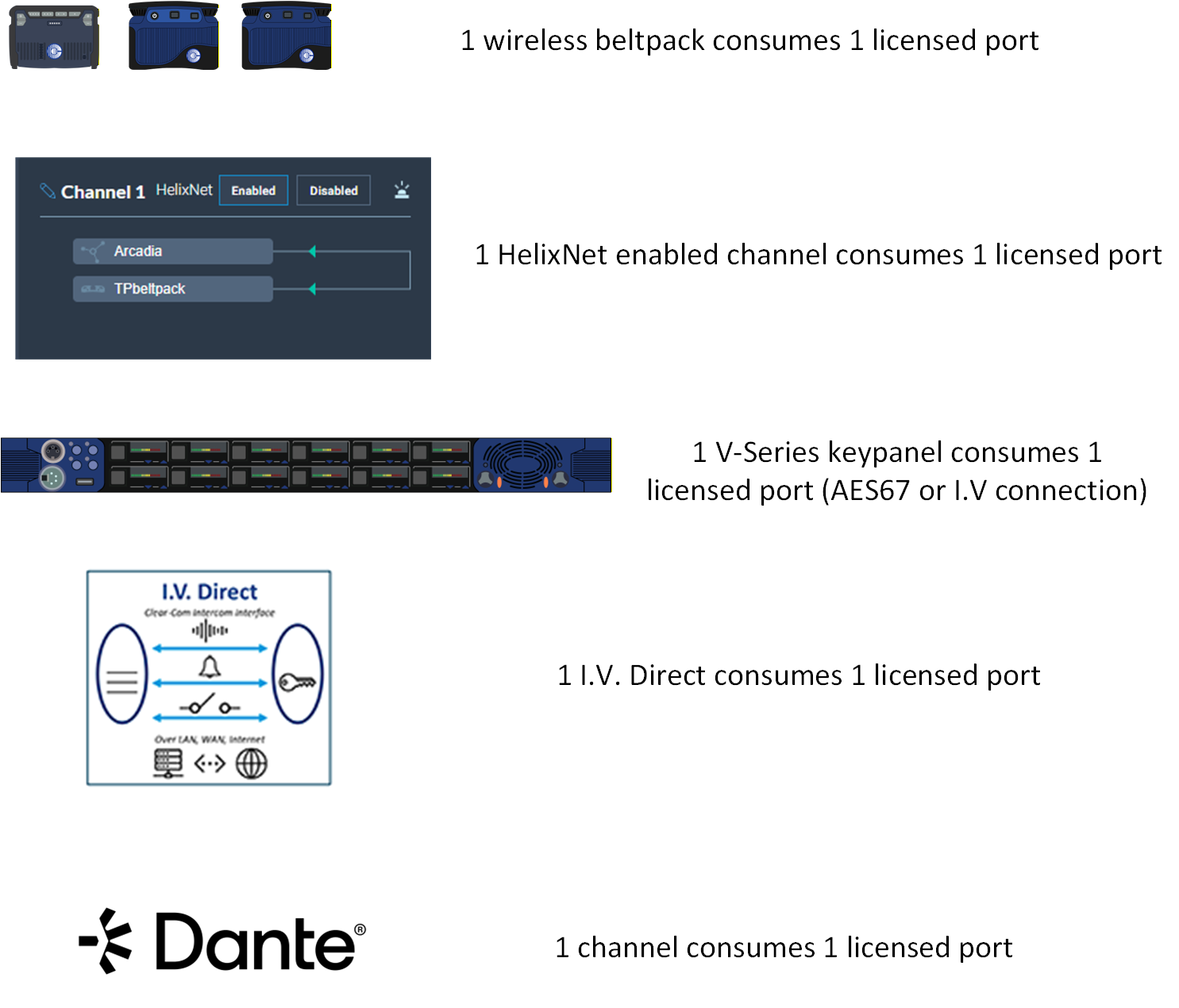

Licensed Ports – Scalable Port Capacity

How many licensed ports do I need? Use the Arcadia Online Licensed Port Calculator available from the Arcadia Knowledge Center.

Arcadia is ordered from Clear-Com with Licensed Port capacity:

Arcadia Licensed Port capacity can be upgraded in the field in increments of 8 or 16 ports available from Clear-Com.

More Information

For more information, refer to the Arcadia Knowledge Center.
